SILICON WAFER DIPPERS | PTFE WAFER DIPPERS
Our PTFE / Teflon wafer dippers are used to aid in the coating process for silicon disks (wafers).
| Part No | Product Name | Oustide Dimensions (Handle) | Inside Dimensions |
|---|---|---|---|
| SM1.16WD1 | Square Dipper 16 1" Pockets | 5.19 in x 4.56 in x 1.00 in (4.75) | 16-01.00 |
| SM1.16WD2 | 16 Cavity – 01.0 Pockets w/Holes | 5.19 in x 4.56 in x 1 In (4.75) | 16-01.00 |
| SM1.25WD1 | Square 15 Slot Dipper | 1.25 in X 1.25 in X 0.50 in (5.25) | 5mm |
| SM1.5VWD1 | 5 Slot – 01.0 Vertical Dipper | 1.75 in x 1.75 in x .75 in (5.38) | 1.00 |
| SM1.75WD1 | Square 5 Slot 5mm to 50mm Wafer | 1.75 in x 1.75 in x 0.75 in (5.38 in) | 5mm to 50mm |
| SM1.75WD2 | 45mm x 55mm Wafer Dipper | 2.42 in x 3.01 in x .75 in (5.25) | 45mm x 55mm |
| SM2.21WD1 | 21 Slot – Vertical 5mm x 5mm to 50mm x 50mm | 2.50 in x 3.50 in x .75 in (5.38) | 5mm to 50mm |
| SM2.5VWD1 | 5 Slot Vertical 2” Dipper | 2.13 in X 3.00 in X 1.75 in (7.509) | 2.00 |
| SM2.5WD1 | Square 10 Slot 5mm to 50mm Wafer Dipper | 2.5 in X 1.75 in X 0.75in (5.38 in) | 5mm to 50mm |
| SM2.5WD2 | Square 20 Slot Wafer Dipper | 2.5 in X 2 in X 0.50 in (5.31) | 10mm |
| SM2.7VWD1 | 7 Slot – Vertical 2” Dipper | 2.38 in x 3.00 in x 1.75 in (7.5) | 2.00 |
| SM2WD1 | Silicon Wafer Dipper 2 inch | 2.64 in X 2.24 in X 0.50 in (5.31 in) | 2.03 |
| SM2WD2 | Slotted Wafer Dipper | 1.90 in X 0.50 in (5.19 in) | 1.75 |

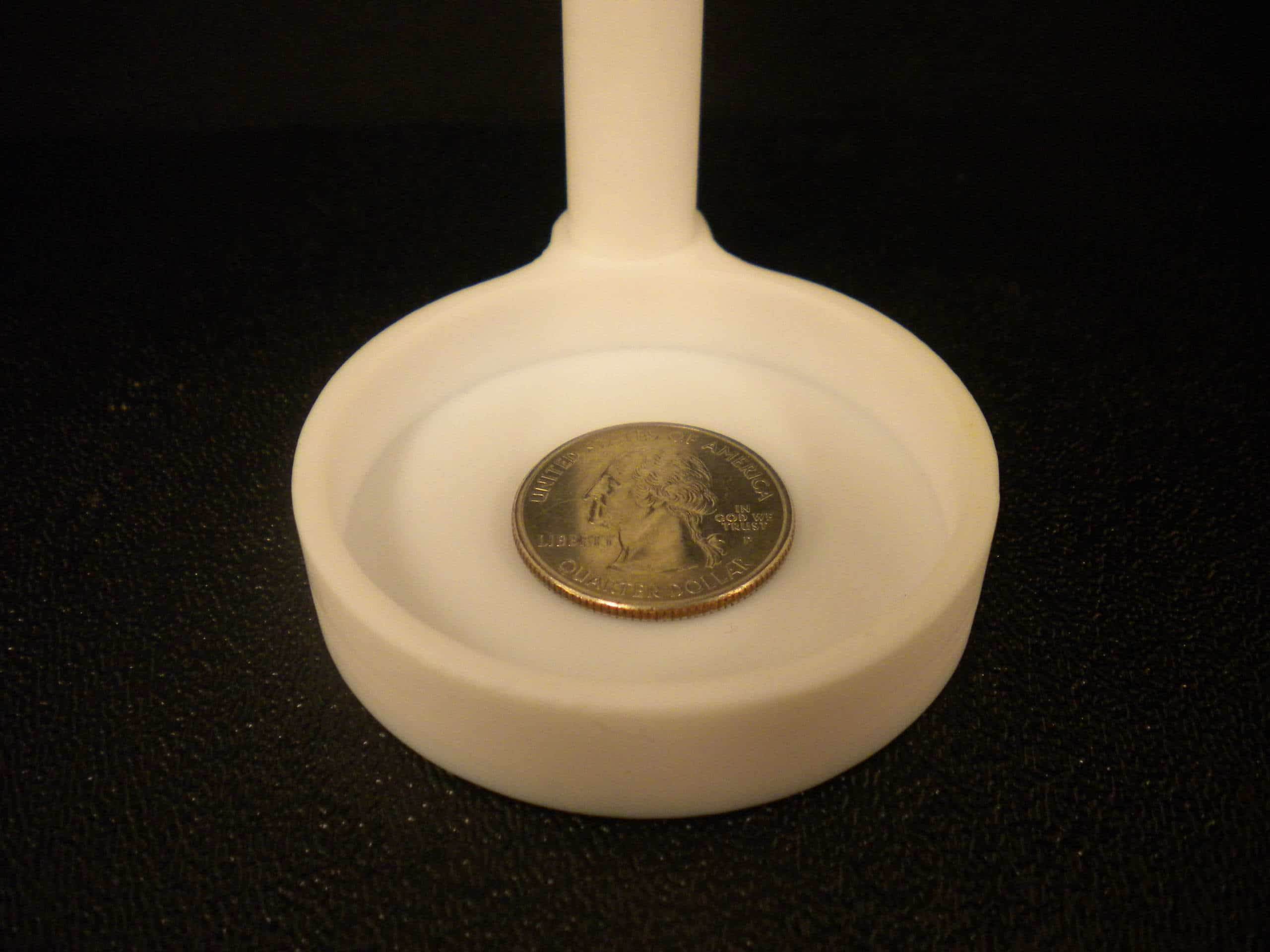

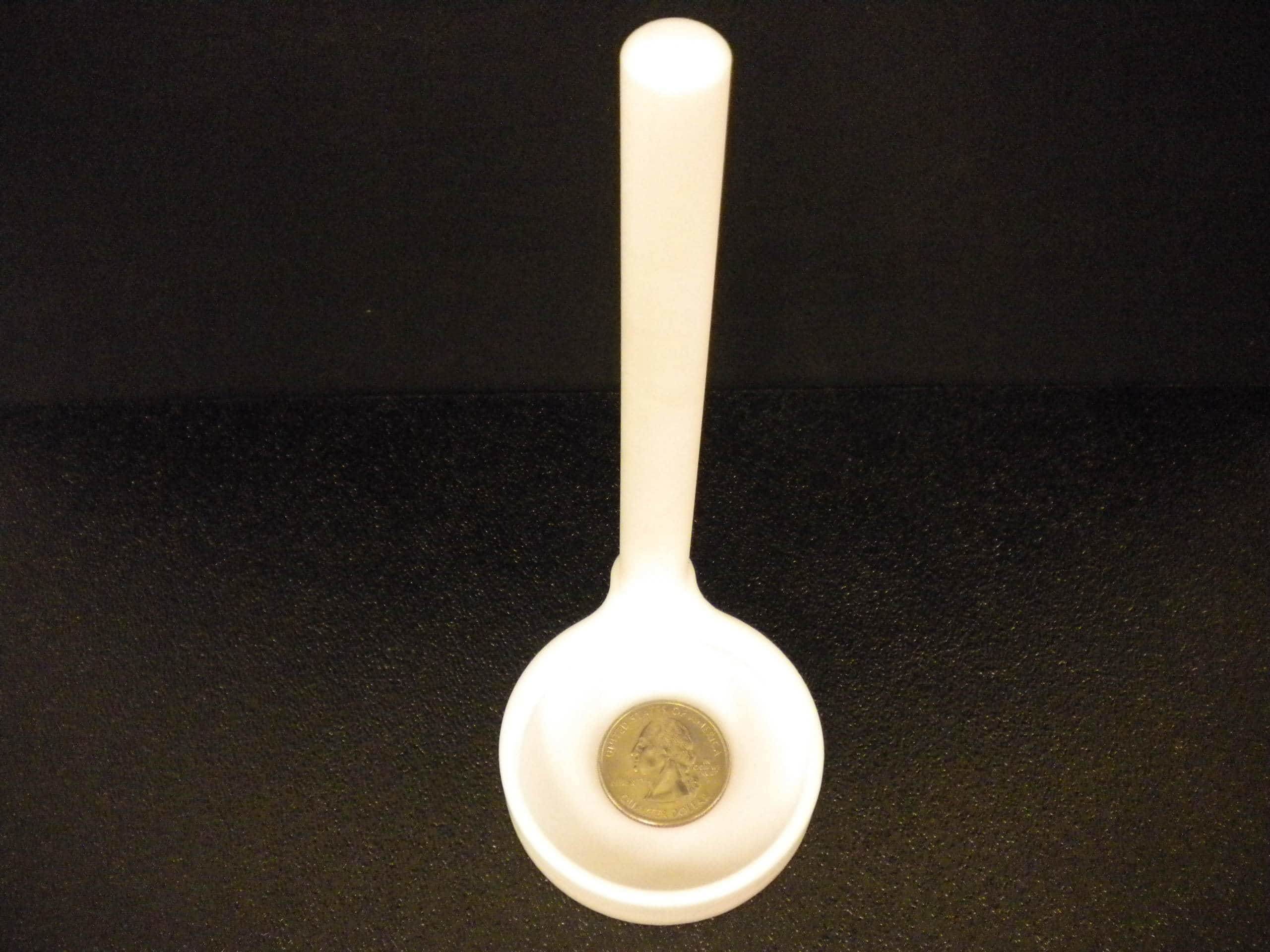

| SM2WD3 | Wafer Dipper with No Holes or Opening | 2.76 in X 2.25 in X .050 in (5.31 in) | 2.03 |
| SM2WD4 | 2” Dipper w/2mm Holes | 2.64 in x 2.24 in x .50 in (5.31) | 2.03 |
| SM3WD1 | Silicon Wafer Dipper 3 inch | 3.64 in X 3.25 in X 0.50 in (5.31 in) | 3.03 |
| SM3.5WD1 | Square 3.5 x 3.5 Wafer Dipper | 4.42 in x 3.79 in x .50 in (5.31) | 3.54 |

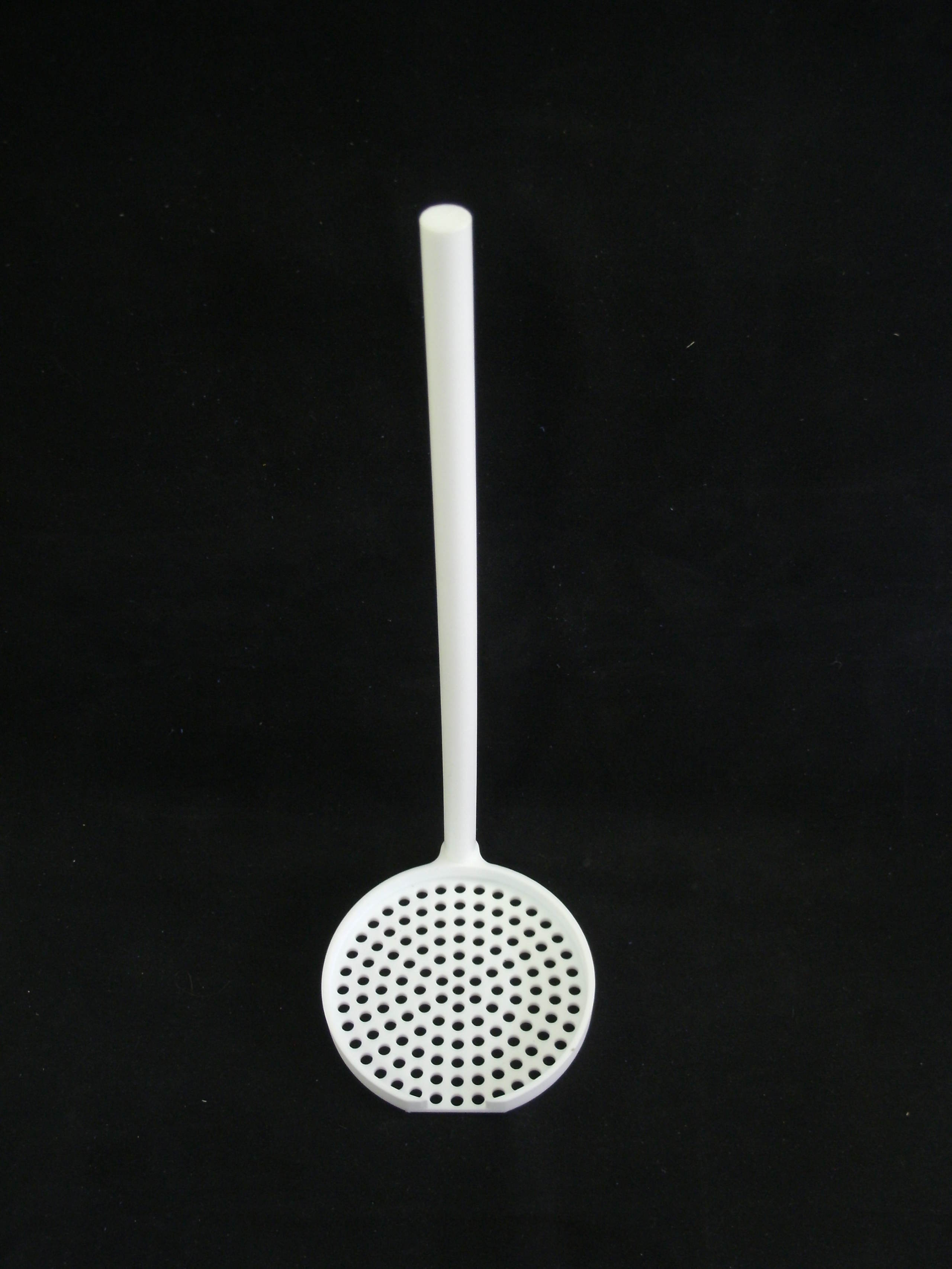

| SM3WD2 | Over-sized 3 inch Wafer Dipper | 3.80 in X 3.41 in X 0.50 in (5.31 in) | 3.19 |

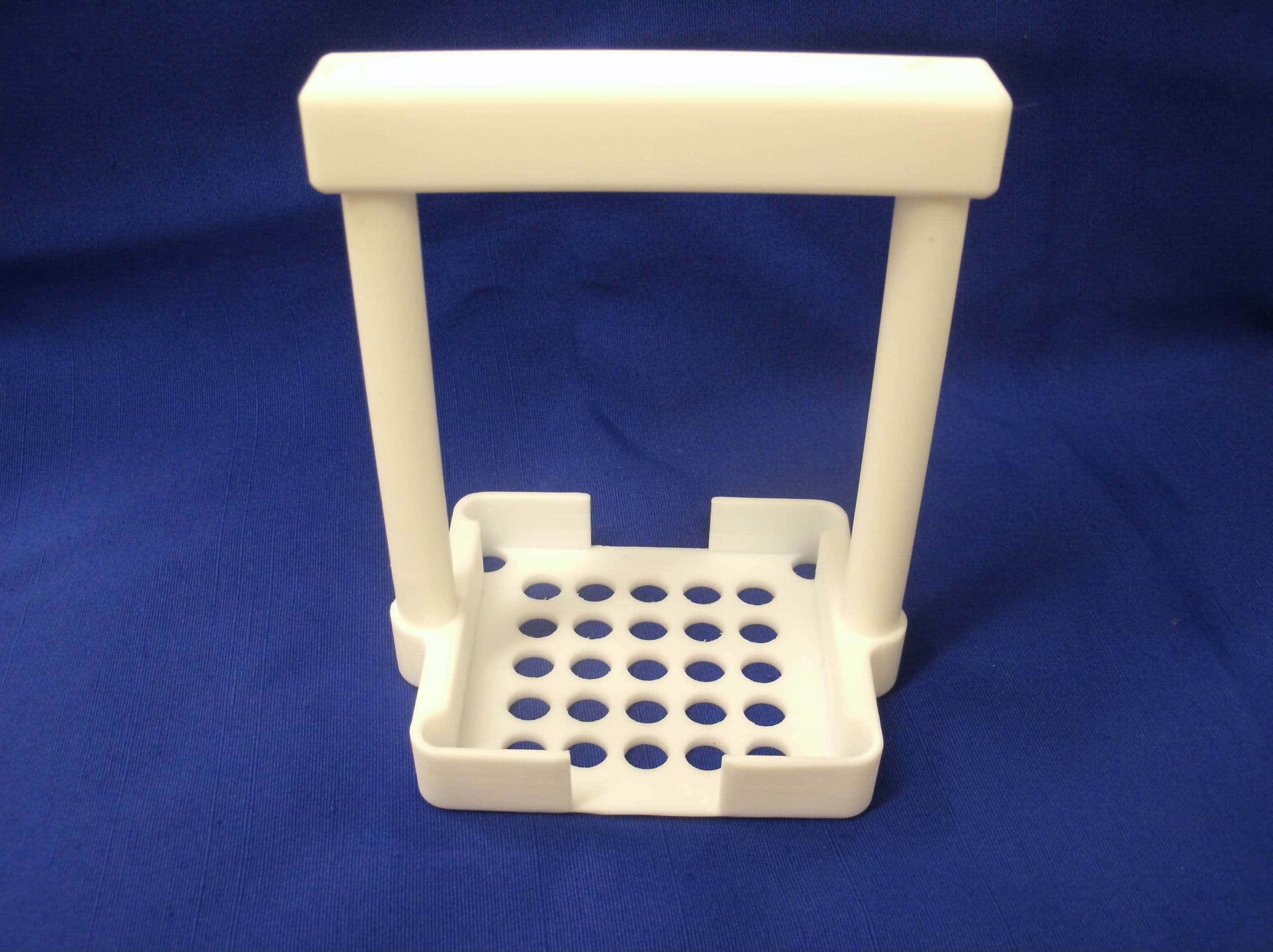

| SM3WD3 Rev A | Square 3x3 Wafer Dipper (two handles) | 3.25 in X 4.50 in X 0.75 in (5.50 in) | 3.03 x 3.03 |
| SM3WD3 Rev B | Square 3 x 3 Wafer dipper Rev B | 3.25 in x 4.50 in x .75 in (5.50 in) | 3.11 x 3.11 |
| SM3WD4 | 3 Opening 3" Dipper .50" Deep | 3.92 in X 3.41 in X 0.50 in (5 in) | 3.19 |
| SM3WD5 | 3 in Etch Holder w/Stand Offs .75 In Deep | 4.39 in x 3.77 in x 1.0 in (3.38 in) | 3.38 |
| SM3WD6 | 10 Slot Wafer Dipper For 3”x3” Wafers | 2.50 in x 3.25 in x 1.0 in (5 in) | 3.0 x 3.0 |
| SM3.6VWD1 | Silicon Wafer Dipper 6 Slot 3” Vertical | 2.25 in x 3.76 in x 1.8 (8.00) | 3.00 |
| SM3WD7 | 3” Dipper w/Hold Down Screws | 3.64 in x 5.55 in x .50 (5.31) | 3.03 |
| SM3.75WD1 | 95mm to 100mm Wafer Dipper | 4.19 in x 5.25 in x .75 in (5.25) | 95mm to 100mm |
| SM4WD1 | Silicon Wafer Dipper 4 inch | 4.58 in X 4.19 in X 0.50 (5.31 in) in | 3.96 |
| SM4WD2 | 4 inch Wafer Dipper w/Hold Down Screws | 4.58 in X 4.48 in X 0.50 in (5.31 in) | 3.96 |
| SM4WD3 | 106 mm Wafer Dipper | 4.86 in X 4.47 in X 0.50 in (5.31 in) | 4.25 |
| SM4.3WD1 | Horizontal 3 Slot 4” Dipper | 2.34 in x 4.58 in x 1.5 in (6.44 in) | 3.94 |
| SM4WD4 | 4” O.D. Dipper w/Handle Inboard, .03 | 4.00 in x .50 in (5.31) | 3.19 |
| SM4WD5 | 4” Dipper With 4 Pockets | 4.58 in x 4.19 in x .50 in (5.31 | 3.96 |
| SM4WD6 | 4” Dipper With 2 Pockets | 4.58 in x 4.19 in x .50 in (5.31) | 3.96 |
| SM4SWD1 | 100mm x 100mm Wafer Dipper | 4.19 in x 4.81 in x .50 in (5.31) | 100mm |
| SM4.5VWD1 | 5 Slot – 04.0 Vertical Dipper | 2.00 in x 4.87 in x 2.40 in (8.00) | 4.00 |
| SM4.6WD1 | Horizontal 5 Slot Wafer Dipper | 2.34 in X 4.58 in X 1.88 in (6.81 in) | 3.94 |
| SM4.6WD2 | Horizontal 6 Slot Wafer Dipper | 2.34 in X 4.58 in X 2.13 in (7.06 in) | 3.94 |
| SM4WD7 | 4” Dipper With 1” Legs | 4.58 in x 4.19 in x .50 in (5.31 in) | 3.96 |
| SM4.9WD1 | 9 Slot – Horizontal 4 in Dipper | 2.34 in x 4.58 in x 2.38 in (7.38) | 2.94 |
| SM4.9VWD1 | 9 - Slot – Vertical 4 in Dipper | 3.00 in x 4.87 in x 2.40 in (8.00 in) | 4.00 |
| SM4.10SVWD1 | 10 Slot – Vertical 3 in x 3 in Dipper | 3.56 in x 4.00 in c 2.00 in (7.00) | 4.0 |
| SM6WD1 | 6 inch 2 Handle Wafer Dipper | 6.25 in x 7.38 in x .50 in (5.31 in) | 6.03 |
| SM6WD2 | 6 inch 2 Handle Wafer Dipper w/Hold Down Screws | 6.25 in X 7.38 in X 0.50 in (5.31 in) | 6.03 |
| SM6WD3 | 6 inch Wafer Dipper w/HD Handle | 6.25 in X 7.83 in X 0.50 in (5.31 in) | 6.03 |
| SM6WD4 | 6 inch Dipper With .5 inch Legs | 6.25 in x 7.38 in x .75 in (5.38 in) | 6.03 |
| SM6WD5 | 6 in Dipper w/.125 Shelf | 6.25 in x 7.38 in x .50 in (5.31) | 6.03 |
| SM6.3WD1 | 3 - Slot 6” Dipper Holder | 7.02 in X 3.34 in X 1.69 in (6.63) | 6.03 |
| SM8WD1 | 8 inch 2 Handle Wafer Dipper | 8.25 in x 9.38 in X 0.50 in (5.31 in) | 8.03 |
| SM8WD2 | 8 inch Wafer Dipper w/1 inch Hole in center | 8.25 in x 9.38 in x .50 in ((5.31) | 8.03 |
| SM8WD3 | 8” Dipper w/Shelf and Stand-offs | 8.25 in x 9.38 in x .50 in (5.31 in) | 8.03 |
| SM8SWD1 | 8 in x 8 in Dipper | 8.25 in x 9.50 in x .50 (5.31) | 7.94 |
| SM8.3WD1 | Horizontal 3 slot 8” Dipper | 4.29 in x 8.99 in x 1.69 in (6.63 in) | 7.87 |
| SM12WD1 | 12" Single Cavity Dipper | 12.25 in x 13.50 in x .50 in (5.81 in) | 12.03 |
| SM15.10SVWD1 | 10 Slot – Vertical 15 mm x 15 mm Dipper | 1.25 in x 1.25 in x .50 in (5.25) | 15mm |
