MULTI-CAVITY TRAYS
ShapeMaster offers a variety of multi-cavity plastic thermoformed trays for just about any use. Many of these plastic trays were designed for biotechnology and automotive companies, but they have been put to use by companies specializing in many other applications. ShapeMaster can produce these plastic trays in any quantity. We can also easily adapt these trays to suit your custom tray requirements. For example, you may need deeper pockets or more cavities. Custom trays are not a problem for ShapeMaster…just let us know your needs and we`ll make it happen!
| Part No | Product Name | Cavity Depth | Top Cavity Opening | Dimensions (flange to flange) | Gauge ( Thickness) | Material | Finish | Color |
|---|---|---|---|---|---|---|---|---|

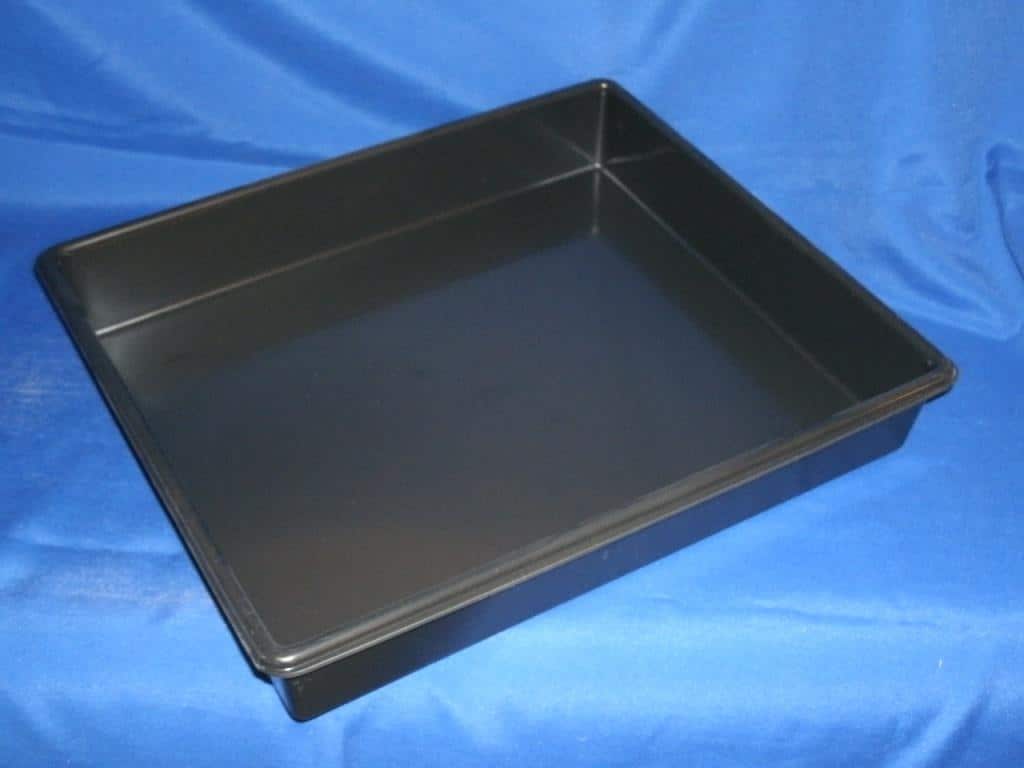

| SM-1 | Single Cavity Tray (Very Popular) | 2-1/2 | 12-1/4 x 14-1/4 | 13-1/4 x 15-5/8 | 1/8 | ABS Plastic | Smooth | Black |
| SM-2 | Single Cavity Tray 4 | 4 | 10-1/2 x 13 | 12 x 14-1/2 | 3/16 | ABS Plastic | Smooth | Black |

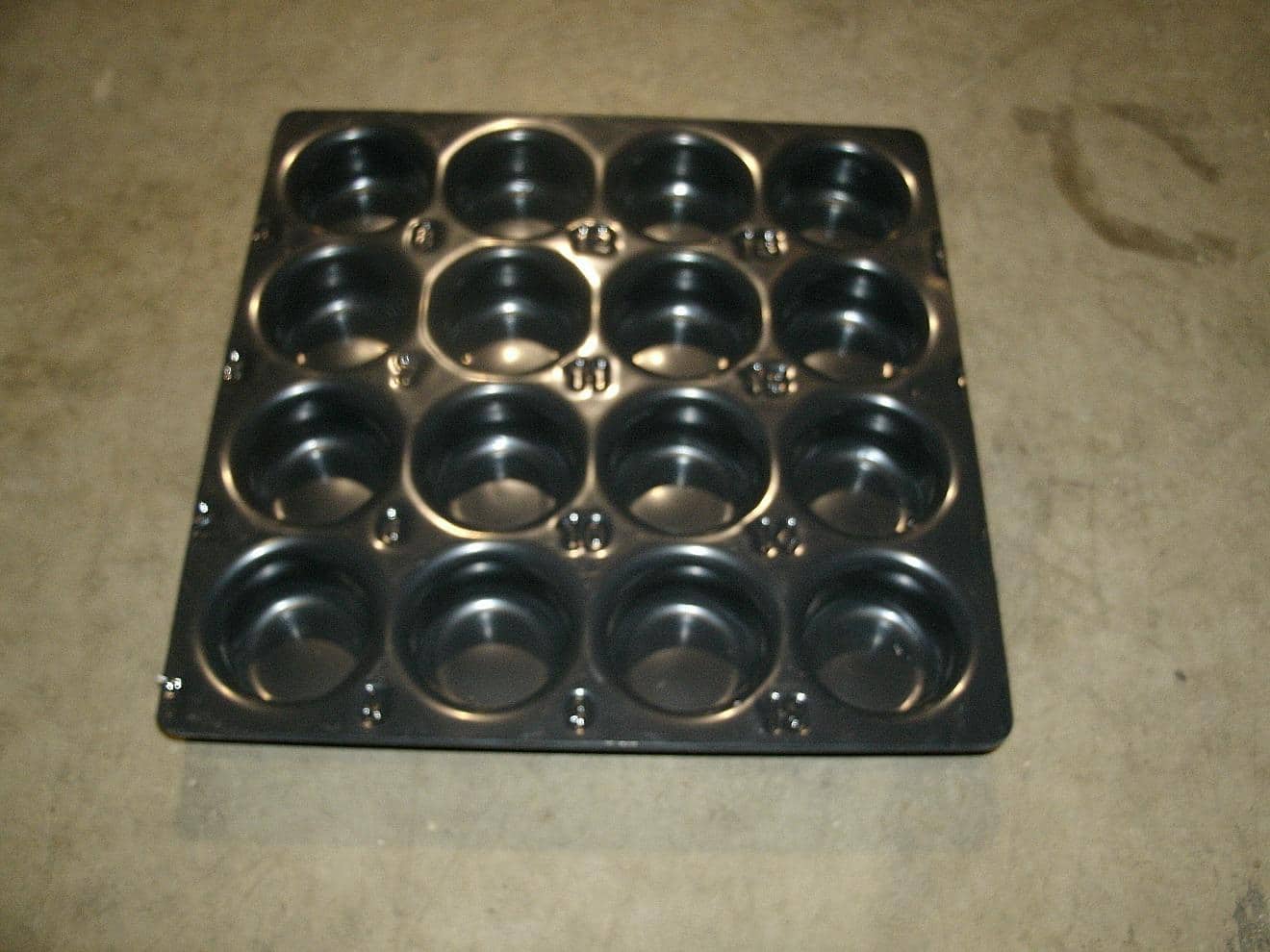

| SM-3 | 16-Round Cavity Tray | 7/8 | 1-7/8 | 9-1/2 x 9-1/2 | 3/16 | ABS Plastic | Smooth | Black |

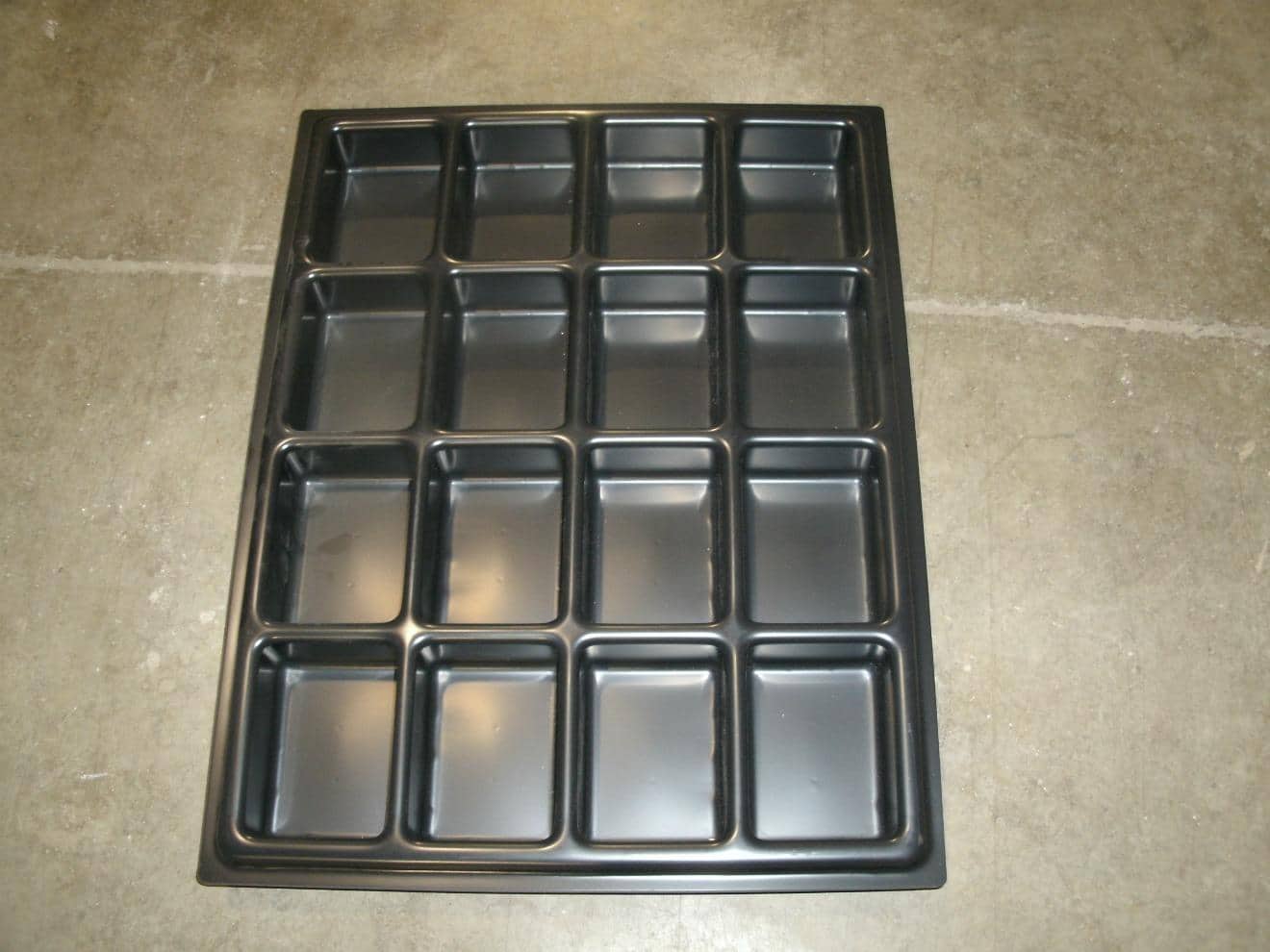

| SM-4 | 16-Rectangular Cavity Tray | 1-5/8 | 1-1/2 x 3-5/8 | 18-3/4 x 14-5/8 | 1/8 | ABS Plastic | Smooth | Black |

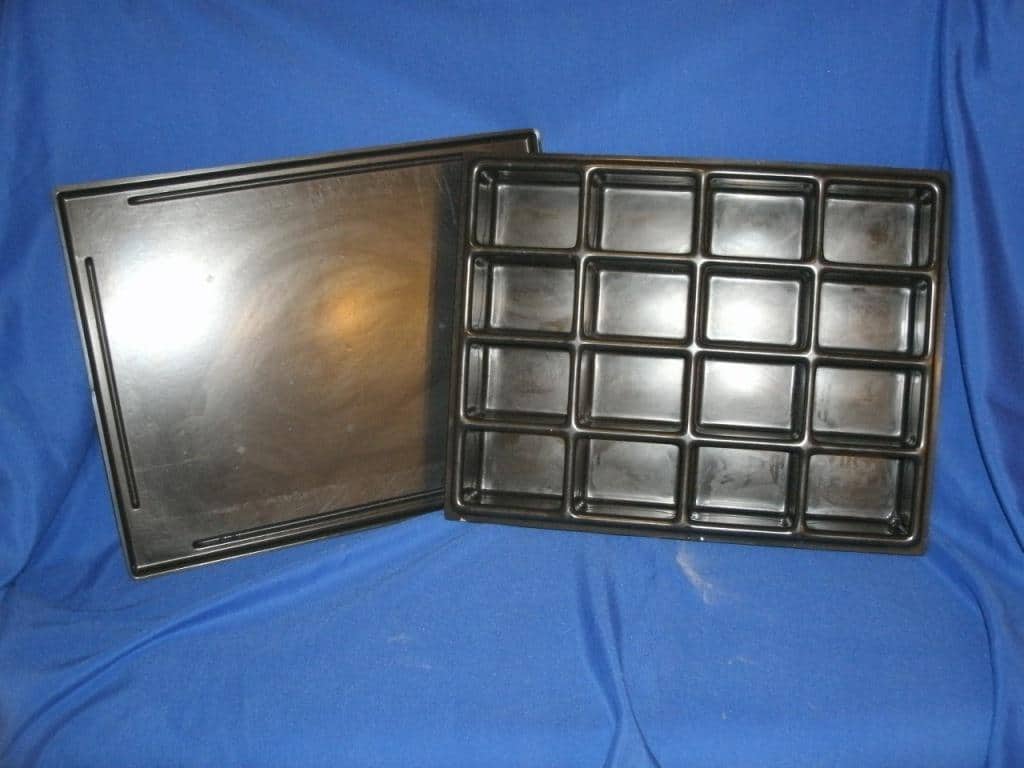

| SM-5 | 16-Rectangular Cavity Tray 3 Deep | 3 | 3 x 4 | 18-3/4 x 14-3/8 | 3/16 | ABS Plastic | Smooth | Black |

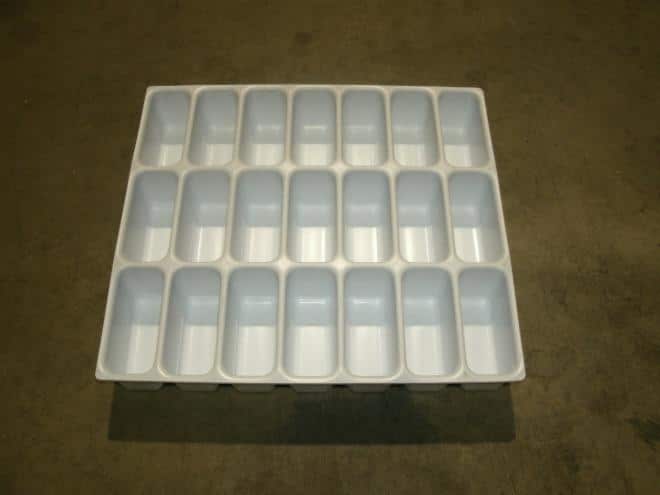

| SM-6 | 21-Cavity Tray | 2-5/8 | 2 x 4-7/16 | 14-4/5 x 16-5/16 | 3/16 | ABS Plastic | Smooth | White |
| SM-7 | 25-Cavity Tray | 1-1/2 | 2-3/4 x 3-3/4 | 23-1/2 x 18 | 1/8 | ABS Plastic | Smooth | Black |
| SM-8 | 64-Cavity Tray | 3/4 | 1-5/8 | 20-1/2 x 20-1/2 | 7/64 | ABS Plastic | Smooth | Black |

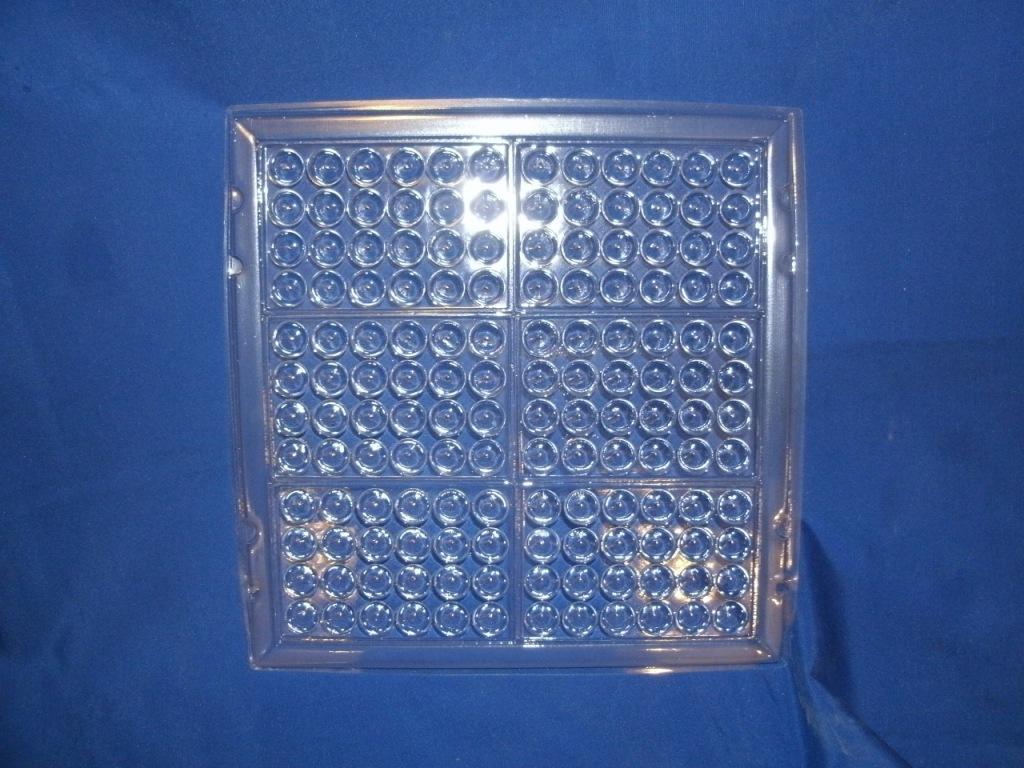

| SM-10 | 144-Cavity Tray | 1/8 | 3/4 | 5-3/4 x 3-3/4 | 1/64 | PETG | Smooth | Clear |

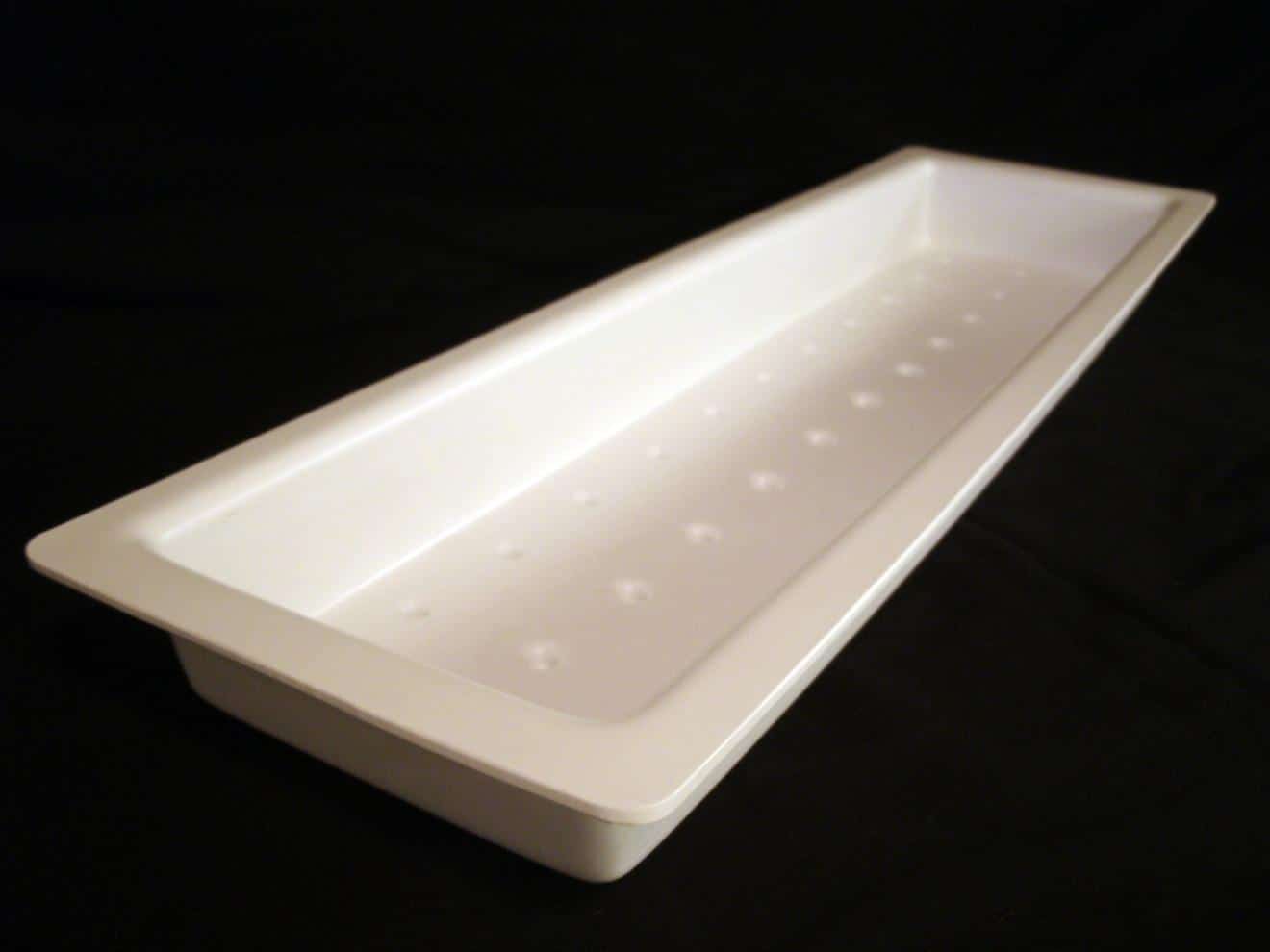

| SM-12 | Core Tray-Single Cavity | 2 | 24 x 6 | 26-1/4 x 8 | 3/16 | Styrene | Smooth | White or Black |
| SM-14 | Lap Tray | 1-1/2 | 21 x 11-7/8 | 18 x 23-1/4 | 1/8 | ABS Plastic | Smooth | White |

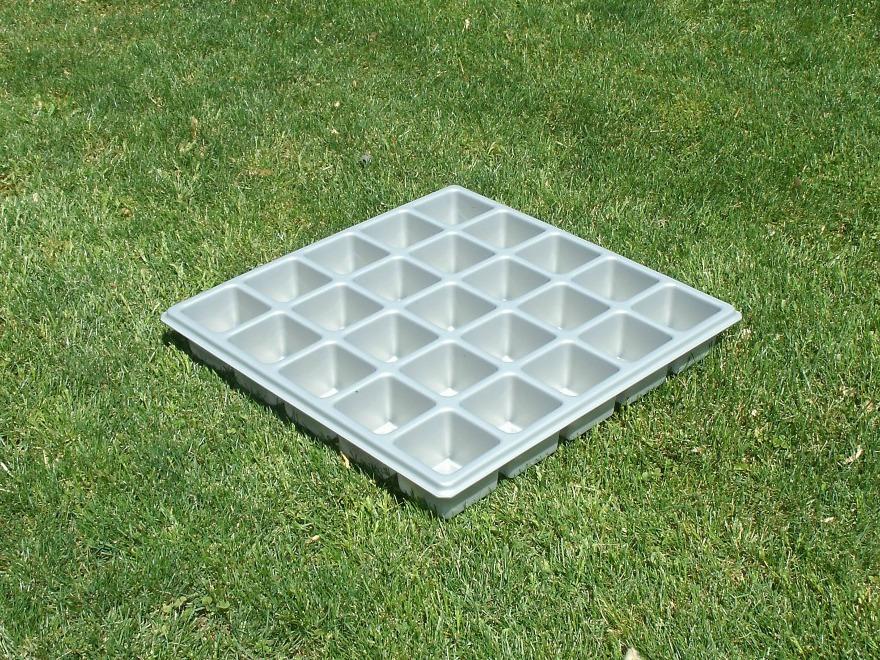

| SM-15 | Large 25 Cavity Tray | 3 | 3-7/8 | 23-7/8 x 23-7/8 | 3/16 | ABS | Smooth | Black |
| SM-16 | 8-Cavity Tray | 2 | 2-6 x 8-78 | 15-84 x 21-25 | 3/16 | ABS | Smooth | Black |
